Two ATEX Zone 2 Vacuum Packages Completed

9th Nov 2022

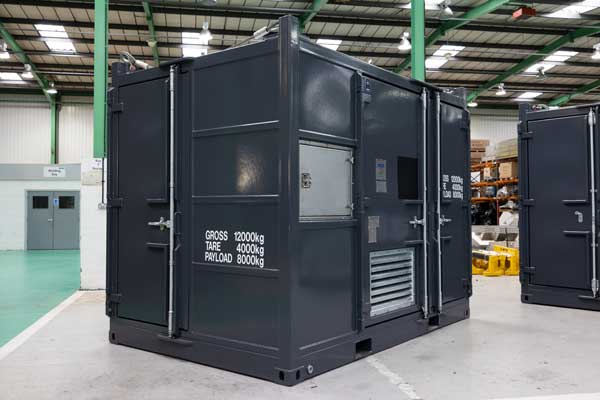

ATEX Zone 2 offshore vacuums ready for despatch

Our latest electric-driven offshore vacuum units are ready for despatch. The two vacuum packages will operate in ATEX Zone 2 hazardous environments on offshore platforms. These versatile machines will perform a range of fabric manitenance duties. The machines are from our MultiVac range of offshore vacuums. We have given a closer look in this video of our latest electric vacuum units.

ISO 10855-1 Compliant Offshore Container

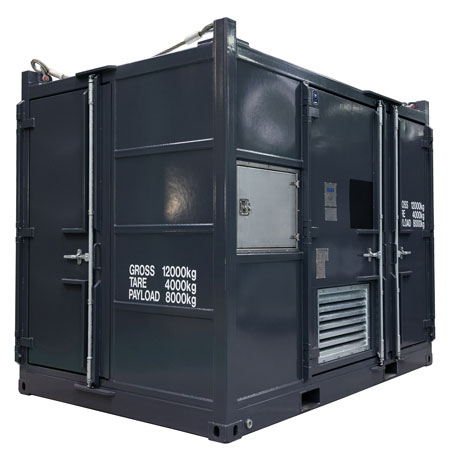

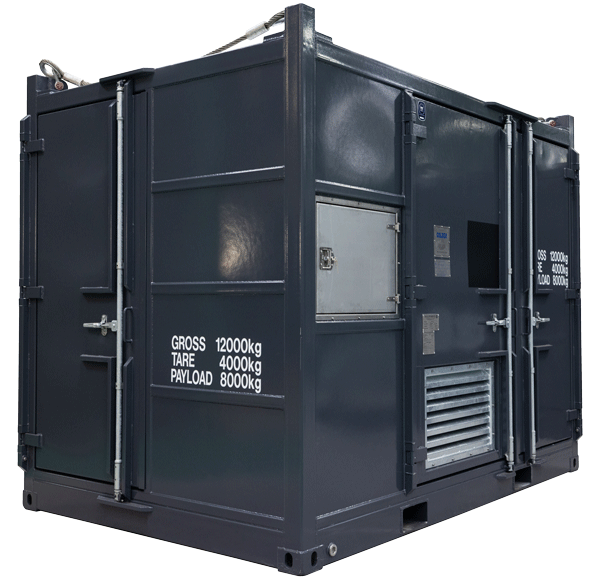

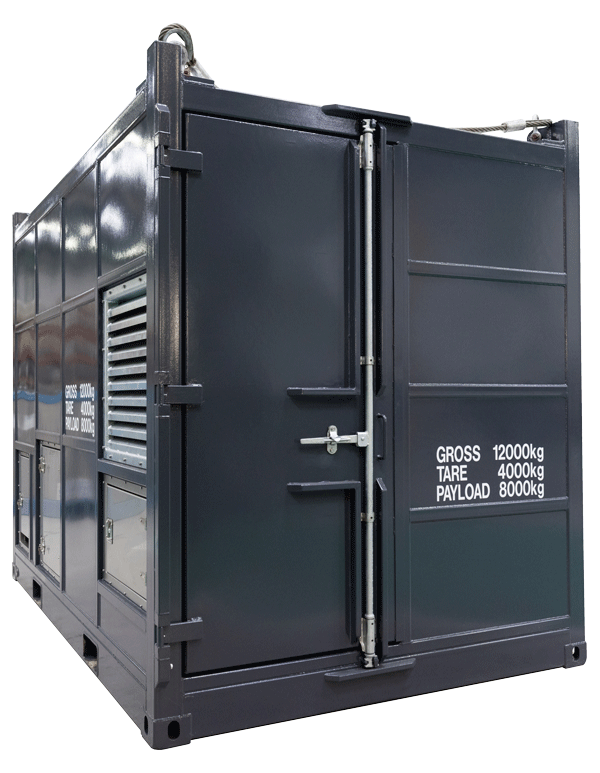

Each unit is housed in an ISO 10855-1 compliant offshore container. The containers are painted in 2-pack epoxy, 4-coat marine finish to protect the units from harsh operating environments. The containers can be lifted by fork lift truck. Lifting by crane is also an option using the 5-leg sling set provided as standard with our offshore packages. A bund/drip tray complete with threaded plugs contains spillages and allows easy draining. The containers are fitted with noise attenuation panels. There are door stays on all main doors, services door and the control panel.

Electric Motor and Drive Coupling

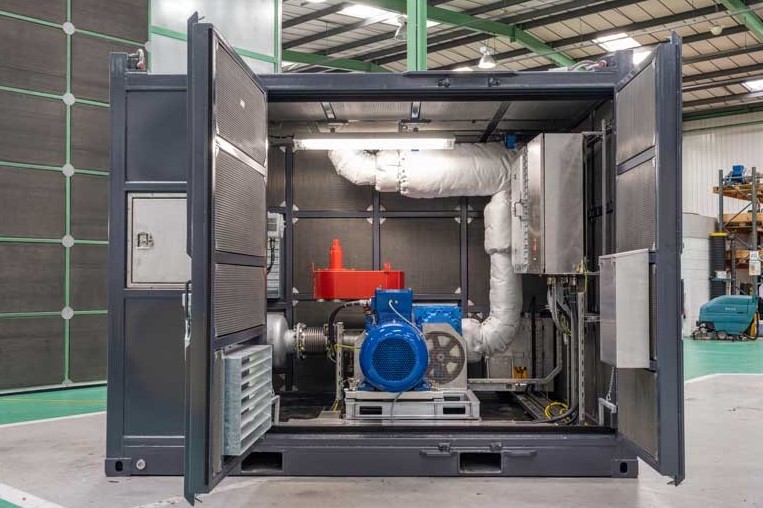

Each offshore vacuum unit is powered by an electric motor with an Exde IIB T3 hazardous area rating. The drive coupling is ATEX certified for hazardous area applications.

Vacuum Pump

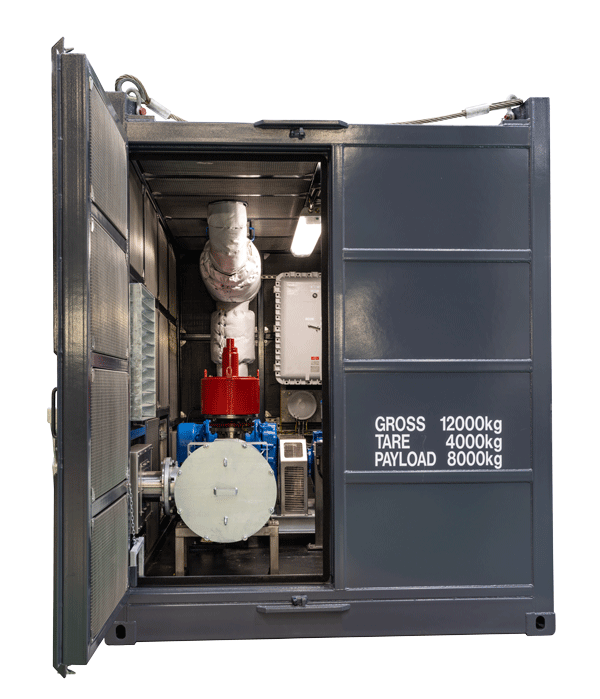

The vacuum pump is a ‘blower style’. The pump has a maximum pressure of 508 mbar (16” Hg) and a maximum flow rate of 1850 cfm.

Control Panel

These ATEX Zone 2 vacuums each feature an Exd control panel. Each control panel is housed in a stainless steel enclosure mounted flush with the container wall.

ATEX Zone 2 Vacuum Packages – Design, Build and Test

These offshore vacuum packages were designed, built and tested by us at our factory in Worcester in the heart of the United Kingdom. Our design team are hugely experienced in engineering for harsh offshore locations. As a company, we have specialised in the design and build of hazardous area packages for almost three decades. Our hazardous area expertise is reflected in the high standard of our documentation. All vacuum units are tested in our purpose-built test facilities.

If you would like to know more, please get in touch. Please call us on +44 1905 751790 or email sales@calder.co.uk your requirements.
